2.0 Gal. 150 PSI 12-Volt High-Flow Air Source Kit
2.0 Gal. 150 PSI 12-Volt High-Flow Air Source Kit
Title:
  • DefaultTitle

$ 57.29

$ 44.07

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

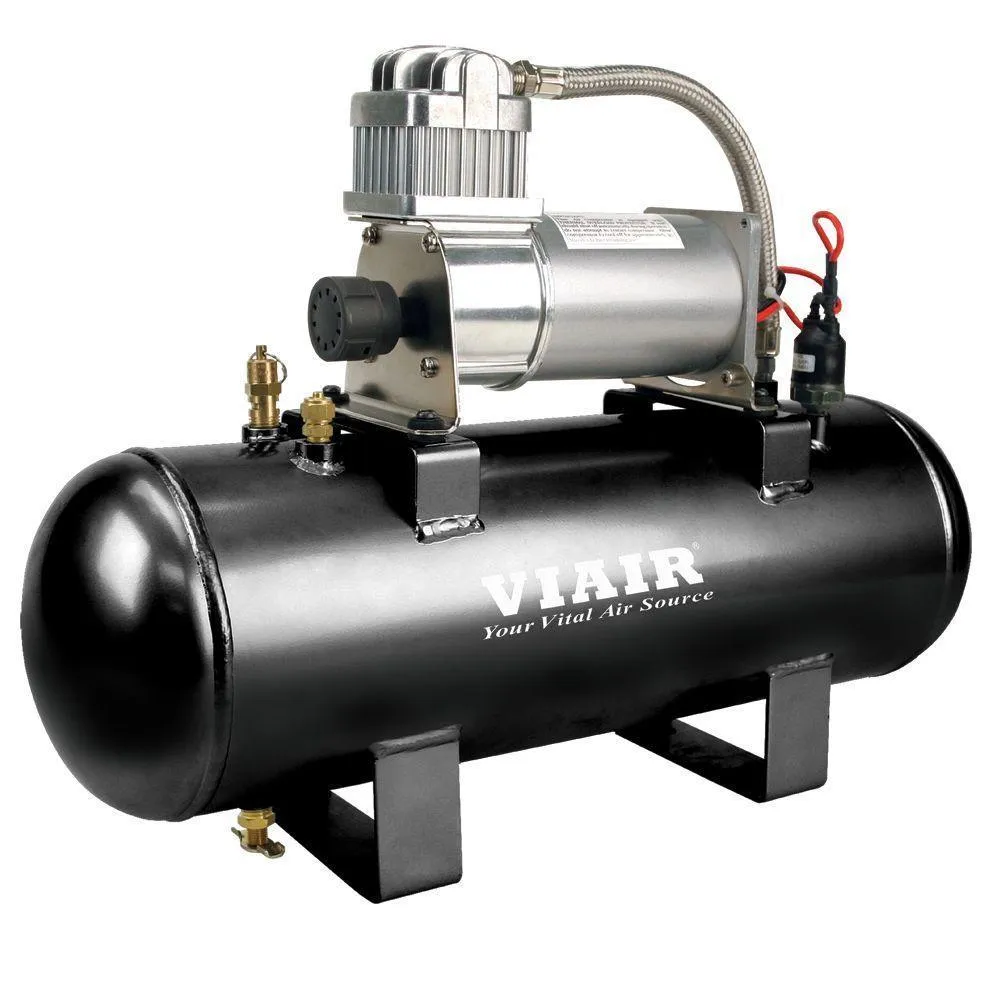

VIAIR 150 PSI Air Source Kits come with a powerful, 30% duty cycle, 280°C VIAIR compressor mounted on a 150 PSI rated 2.0 Gal. air tanks with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20005 / 110-150 PSI). The 150 PSI Air Source Kit comes complete with a 1/4 in. NPT brass drains cock, 1/4 in. NPT ASME coded and certified safety valve, 1/2 in. NPT port compression fitting for 3/8 in. airline pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an airline to the compression fitting. The use of a 40 Amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
  • California residents
  • Kit comes with a VIAIR 280°C air compressor and is capable of building 150 PSI with a flow rate of 1.31 CFM at 0 head pressure
  • To create your own air horn system, you just need to tap your air hose in from your air horn, then follow your air horn wiring diagram
  • Vehicle's engine must be running before turning on the compressor
  • (Optional) you can also tap into the air tank to use the air source kit as a tire inflator
  • Follow the wiring diagram in the instructions or visit our website for the schematic


Features
Item Weight 24
Lubrication Type Oil Free
Decibel Rating (Outdoor) Not Measured
Air Delivery SCFM @ 40PSI 1.0
Horsepower (hp) 0 hp
Voltage (v) 12v
Compressor Volume Rating Not Measured
Power Type Corded Electric
Compressor/Air Tool Features Combo Kit,Oil Free Compressor
Air Delivery SCFM @ 90PSI 0.8
Product Weight (lb.) 24
Voltage (volts) 12
Included No additional components or accessories are included
Maximum Pressure (psi) 150
Tools Product Type Air Compressor Kit
Compressor Tank Capacity (Gal.) 2 Gal.
Compressor Tank Capacity (Gallons) 2
Portable No
Tank Style Hot Dog
Application Use Inflation
Returnable 180-Day
Compressor Type Garage & Industrial
Amperage (amps) 20
Tank Material Steel
Power Source Electric
Stage Count Single Stage
Product Depth (in.) 22
Product Height (in.) 9
Product Width (in.) 16
Manufacturer Warranty VIAIR One Year Manufacturer's defect warranty with proof of purchase.
Certifications and Listings No Certifications or Listings
